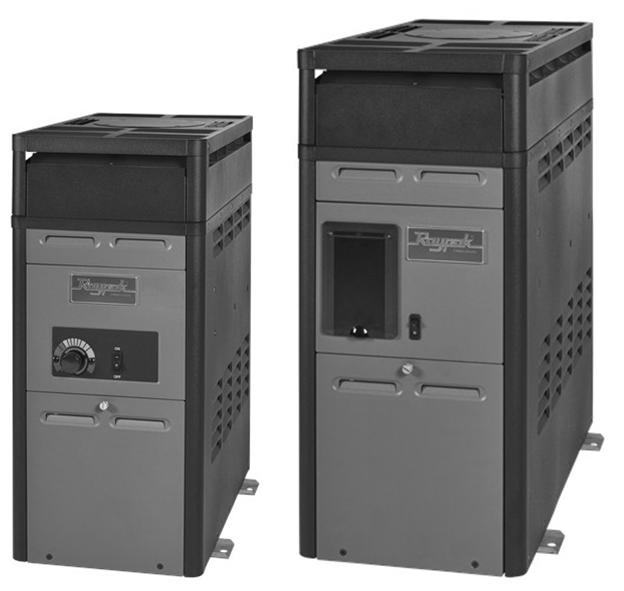

Raypak 106A & 156A Heater Parts

Stock Items:

6-C      THERMOSTAT CONTROL (ANALOG):

—           106A   011585F

—           156A   N/A

1-G      COMBINATION VALVE NAT.:

—           106A   014867F

—           156A   014867F

2-J      TRANSFORMER 120/240/24V
                ANALOG

—           106A   011605F

—           156A   N/A

               DIGITAL

—           106A   N/A

—           156A   006736F

1-M      PRESSURE SWITCH 1.75 PSI

—           006737F for both

12-M   ROLL-OUT SAFETY SWITCH

—           005899F for both

1-P       PILOT NAT./PRO.

—           002003F for both
3-V      OUTDOOR STACK W/ADAPTER (OUTDOOR)

—           106A   014718

—           156A   014719

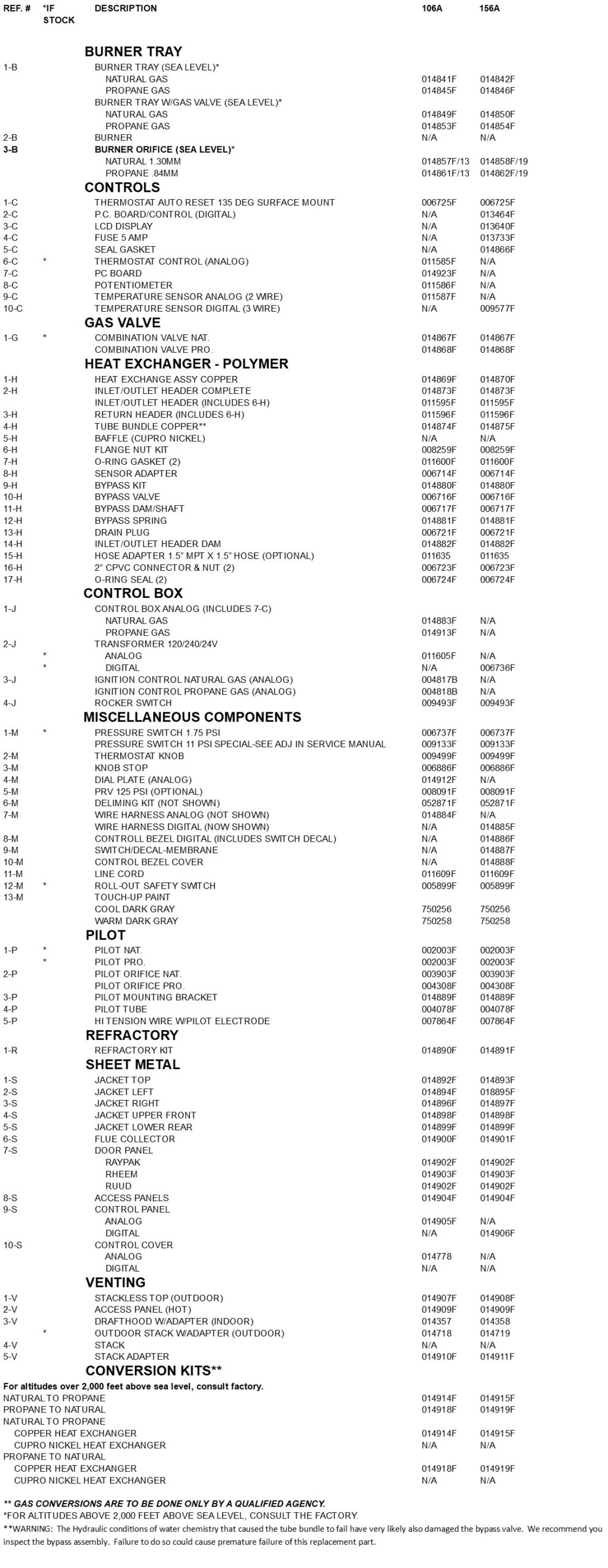

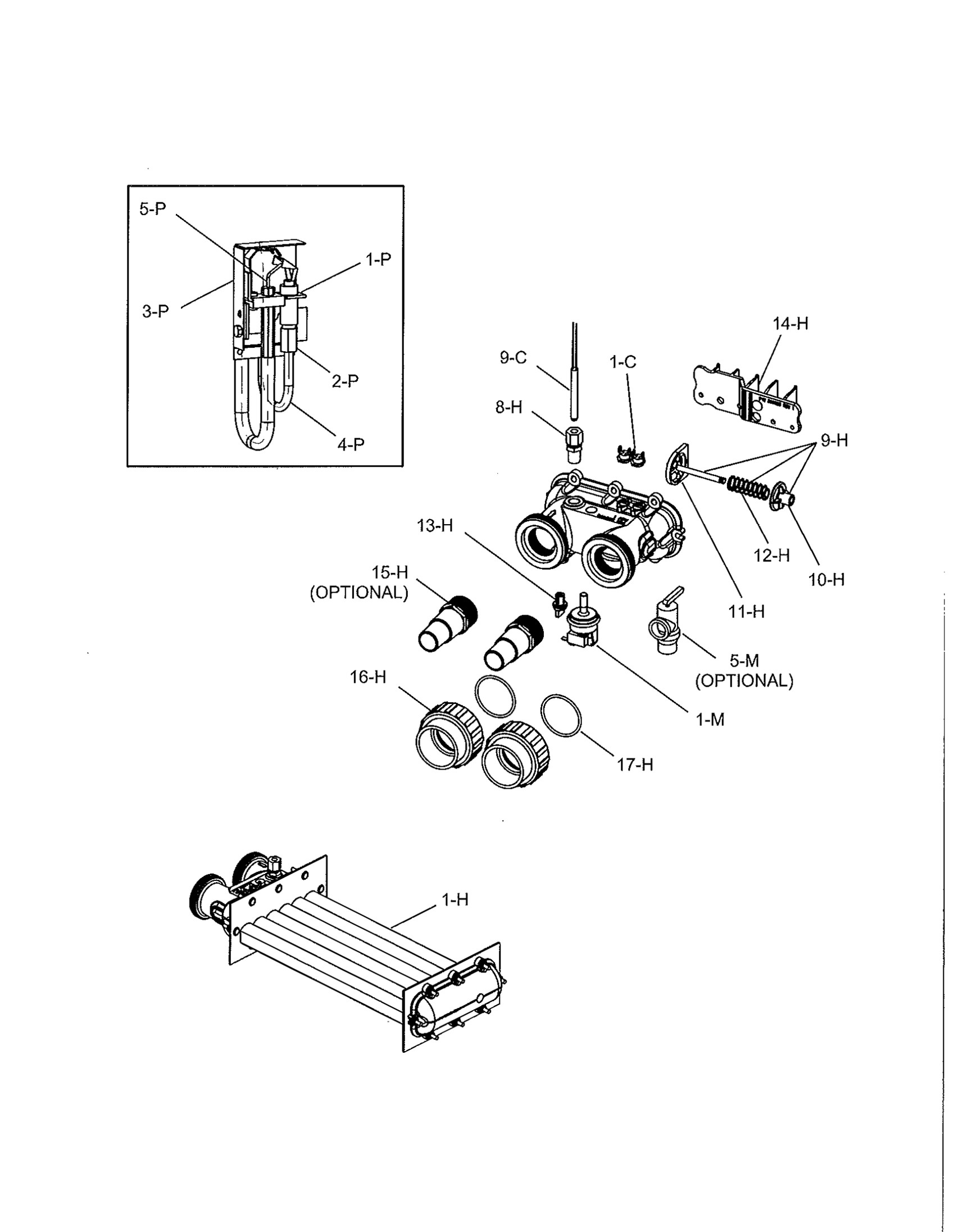

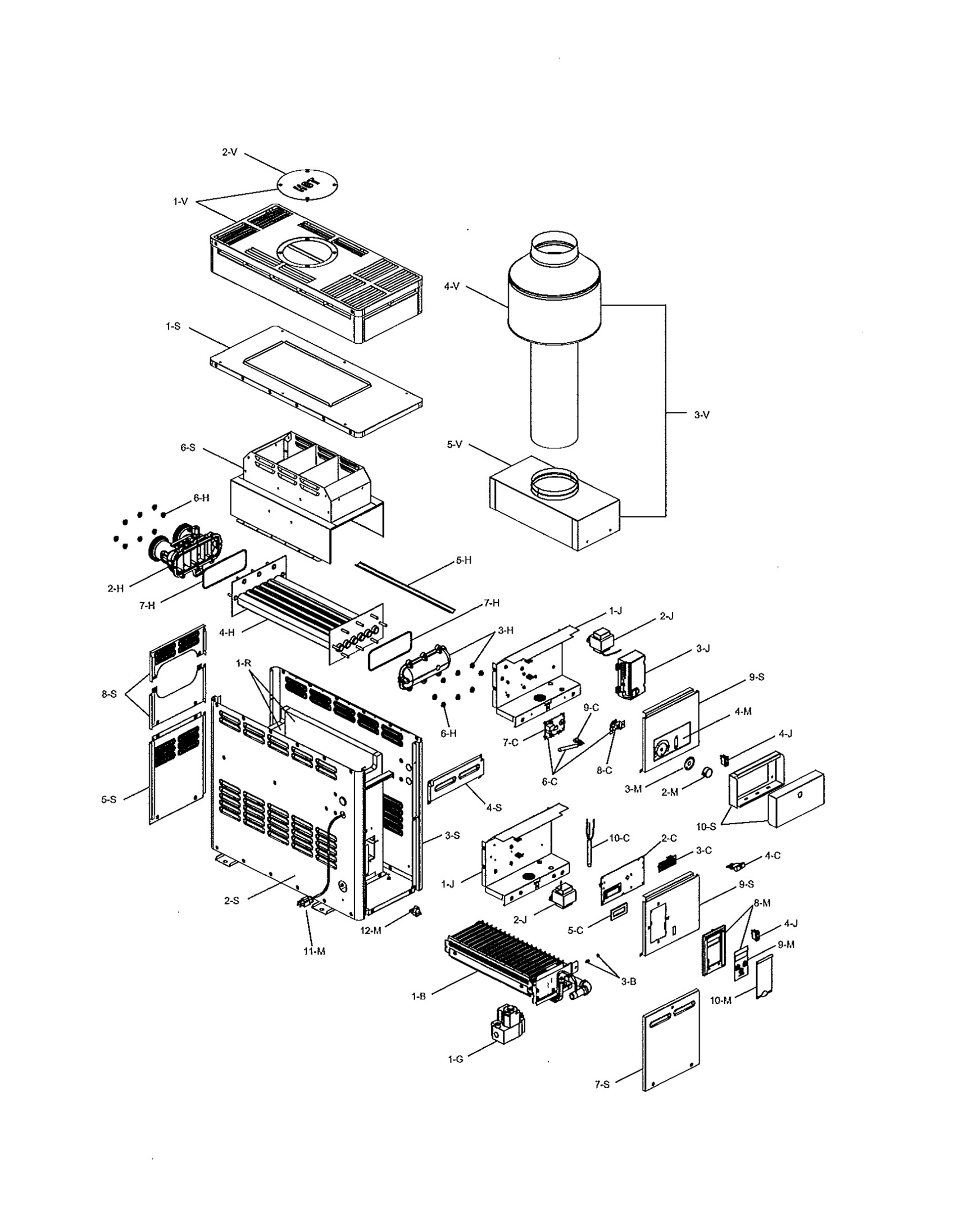

All other items available by special order only.  For additional information, click on the downloads below to see full list of parts numbers and picture breakdowns.
