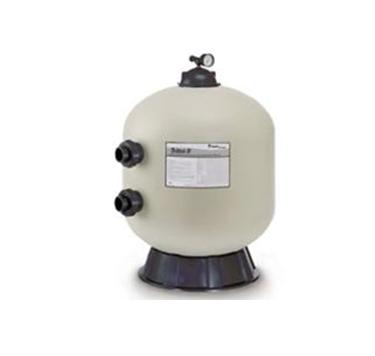

Pentair TR100 & TR140 Sand Filter Parts-6" Opening

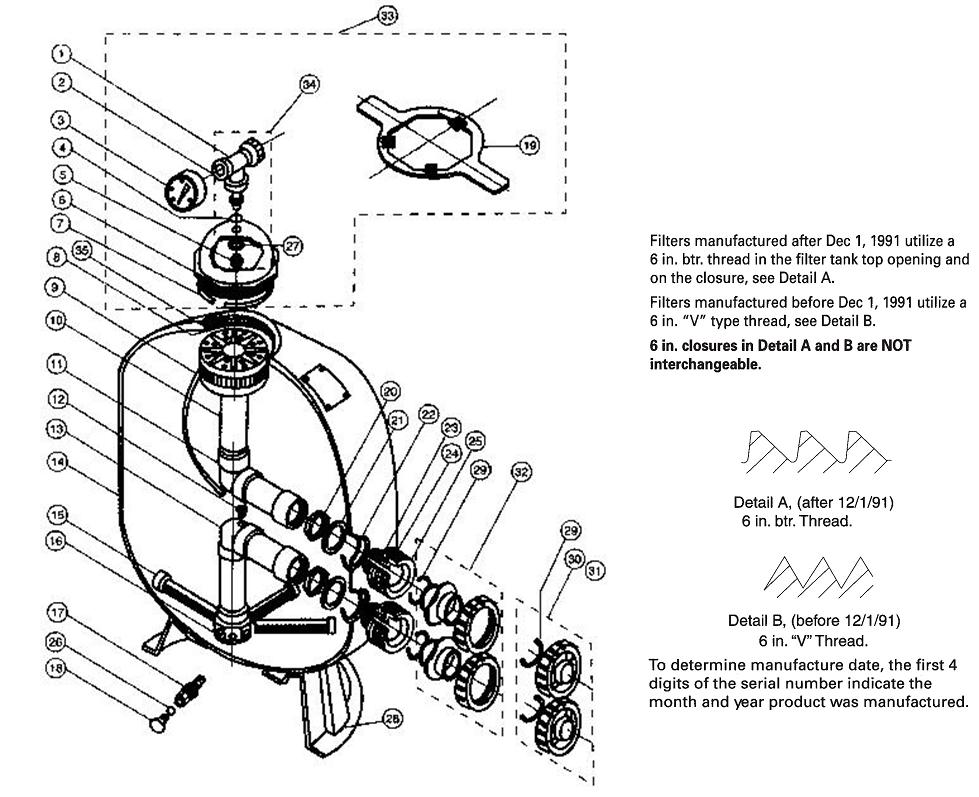

Ref. #          Part #/Description

15                   15-2290 Lateral – 6 11/16” L TR40/50/60, 8 req.
15              ‡‡ 152202 Lateral – 9 1/8” L TR100, 8 req. (After May 1985)
15                   15-4540 Lateral – 12” L TR140, 8 req.

32               « 27-1096 Kit – 1 1/2” & 2” slip adaptor (For installations w/out valve, pair)

34                  15-4687 Fitting package – complete

Items below available by special order only.

Ref. #          Part #/Description

1                      154689 Air bleed/tee assembly
2                      154700 Adaptor – brass air bleeder
3                      190059 Gauge – back mount pressure
4                      154661 O-ring – air bleeder adapter
5                      154664 Nut – 3/8” – 16SS
6                      152519Z Closure – 6” buttress thread with o-ring
6                      154559 Closure-6” ‘V’ thread – blk (See Detail B)
7                      154493 O-ring – closure, white
8                      154578 Strainer – air relief 1/4” (Nov.1, 1999 and prior)
8                      150035 Strainer – air relief 3/8” (After Nov. 1, 1999)
9                      154435 Tube – air relief TR40 (Nov. 1, 1999 and prior)
9                      150039 Tube – air relief TR40 (After Nov. 1, 1999)
9                      154436 Tube – air relief TR50/60 (Nov. 1, 1999 and prior)
9                      150040 Tube – air relief TR50/60 (After Nov. 1, 1999)
9                      154437 Tube – air relief TR100 (Nov. 1, 1999 and prior)
9                      150041 Tube – air relief TR100 (After Nov. 1, 1999)
9                      154438 Tube – air relief TR140 (Nov. 1, 1999 and prior)
9                      150042 Tube – air relief TR140 (After Nov. 1, 1999)
10                    154598 Diffuser Assembly TR40/50
10                    154599 Diffuser Assembly TR60
10                    154462 Diffuser Assembly TR100
10                    154906 Diffuser Assembly TR140
11                     154803 Piping Assembly – upper TR40
11                     156814 Piping Assembly – upper TR50
11                     154533 Piping Assembly – upper TR60
11                     154426 Piping Assembly – upper TR100

11                      154500 Piping Assembly – upper TR140
12                     150036 Connector – air relief tube (After Nov. 1, 1999)
13                     154801 Piping assembly – lower TR40
13                     156816 Piping assembly – lower TR50
13                     155284 Piping assembly – lower TR60 (After June 2007)
13                     154807 Piping assembly – lower TR/PF100
13                     154489 Piping assembly – lower TR140
14                     154636 Tank & foot assembly TR40 – 6” buttress thread – blk (See Detail A)
14                     154638 Tank & foot assembly TR60 – 6” buttress thread – blk (See Detail A)
14                     154639 Tank & foot assembly TR100 – 6” buttress thread – blk (See Detail A)
14                     154640 Tank & foot assembly TR140 – 6” buttress thread – blk (See Detail A)

15                     150085 Lateral, TR60 Gray, 1/4 turn (After June 2007)

16                     154763 Hub – lateral TR40/50/60
16                     154453 Hub – lateral TR100/140
–                        152220Z Sand drain 2” (Left-hand thread)
17                    *154698 Spigot – 3/4” NPT sand drain
–                        154871 Cap thread – 1 1/2”
18                     357161 Plug – 1/4” NPT drain
19                      154512 Wrench – 6” closure
19                      154510 Wrench – Closure aluminum
20                     154412 Locknut – 2” internal, 2 req.
21                      154416 Spacer – 2” internal, 2 req.
22                      154492 O-ring – 2” bulkhead, 2 req.
23                      154408 Spacer – 2” external, 2 req.
24                      154538 Gasket – 2” bulkhead, 2 req.
25                      154405 Bulkhead – 2”, 2 req.
26                      192115 O-ring drain plug 4.50
27                      154418 Washer – 3/8” S/S
28                      154926 Foot – 16” diameter, TR40/50 (See Note 1)
28                      154520 Foot – 19” diameter, TR60 (See Note 1)
28                      154596 Foot – 24” diameter, TR100/140 (See Note 1)
—                       154402 Tape-foot mounting TR40/50/60, 3 req.
—                       154407 Tape-foot mounting TR100/140, 3 req. 1
29                      274494 O-ring – valve adaptor, 2 req.
30                   « 271092 Kit – 2” thread adaptor
31                    « 271094 Kit – 1 1/2” thread adaptor
32                      274426 Adapter Kit, 1-1/2” x 2”
33                       154641 Kit – closure, 6” buttress thread – blk (See Detail A)
33                       154697 Kit – closure, 6” ‘V’ thread – tan (See Detail B)
33                       154856 Kit – closure, 8-1/2” btr. thread, black
—                        151602 Bulkhead wrench, 2”
—                        154714 Bulkhead kit
35                       154611 Spacer – air vent strainer 3 3/4” – TR40
35                       154612 Spacer – air vent strainer 4 1/2” – TR50/60
35                       154613 Spacer – air vent strainer 5 1/2” – TR100
35                       154614 Spacer – air vent strainer 5” – TR140

< USED ON TRITON FILTERS BUILT BEFORE FEBRUARY 1989
<< USED ON TRITON FILTERS BUILT AFTER FEBRUARY 1989
‡ USED ON TRITON FILTERS BUILT BEFORE MAY 1985
‡‡ USED ON TRITON FILTERS BUILT AFTER MAY 1985
* USED ON TRITON FILTERS BUILT AFTER MARCH 1983-1996
** USED ON TRITON FILTERS BUILT BEFORE MARCH 1983
« FOR INSTALLATIONS WITHOUT VALVE (PAIR)
Note 1: Replacement of tank foot requires the use of foot mounting tape. See part numbers listed.
