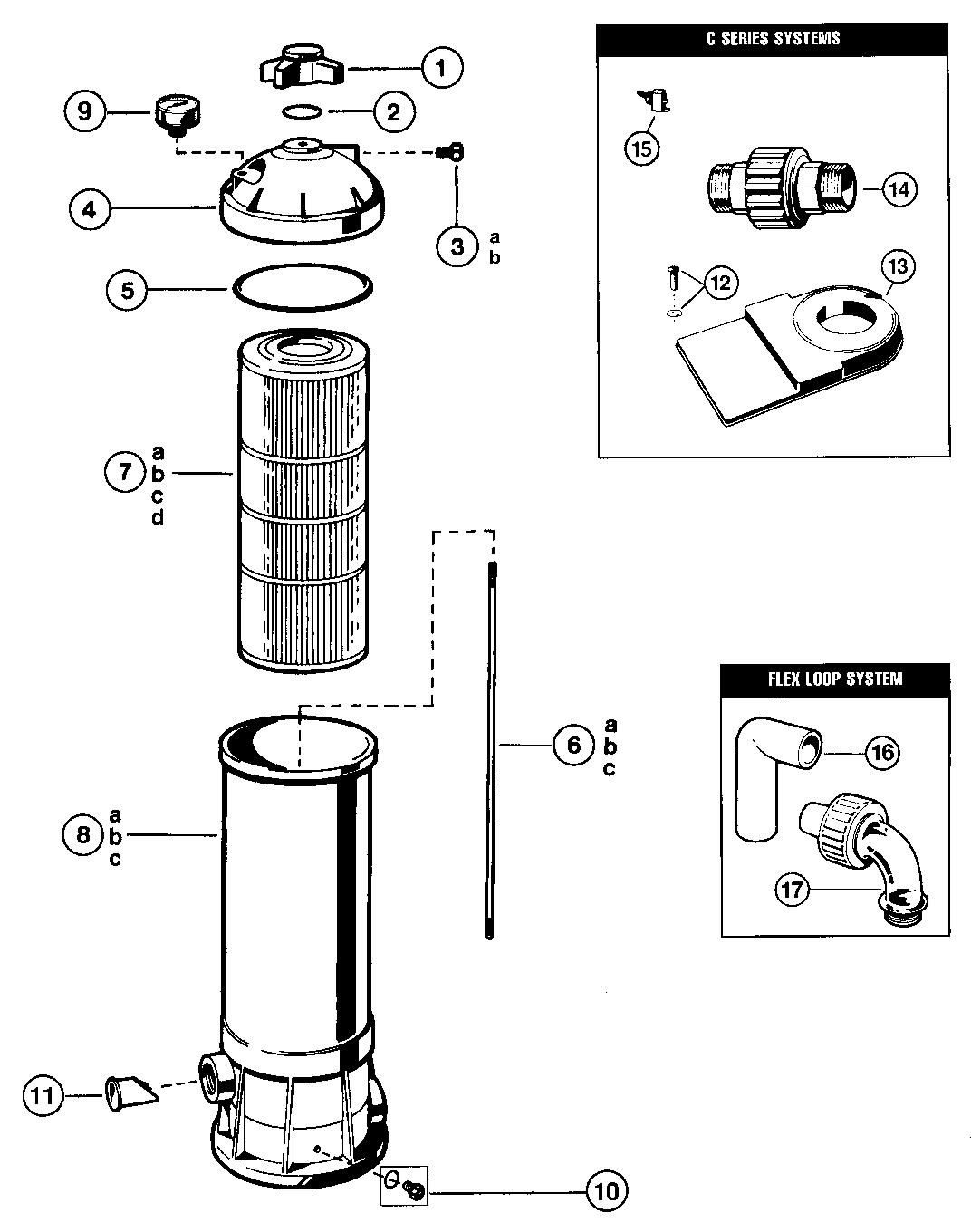

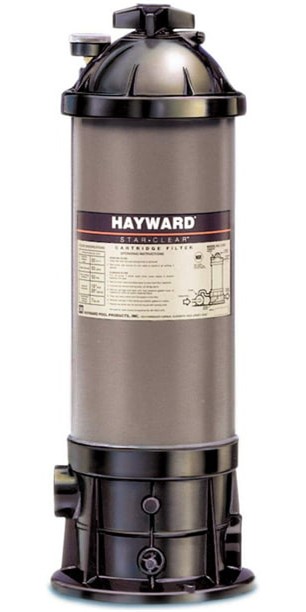

Star Clear Cartridge Filter C250, C500, C750

REF.#   PART #

7b          CX500RE Cartridge Element (C500-RE)

9            ECX27091 Pressure Gauge, Back Mount

11           ECX4077B1 Check Valve (Optional)

14          SP1480BLK 1 1/2” Male Union

Parts below are available by Special Order Only:

REF#    PART #
1             CX250G Locking Knob
2            CX250Z7 O-Ring
3            ECX1322A Directional Vent Valve with O-Ring
4            CX250C Filter Head (dome) with Air Relief Valve

5            CX250F Filter Head Gasket

6a          CX250Z2S Tie Rod (C250), 18 9/32”
6b          CX500Z2S Tie Rod (C500), 28 3/32”
6c          CX750Z2S Tie Rod (C750, C100), 38 1/16”

7a          CX250RE Cartridge Element (C250-RE)
7c          CX750RE Cartridge Element (C750-RE)

10          CX250Z14A Drain Plug Kit

C SERIES SYSTEMS
12          ECX1108A Pump Mounting Screw w/Washer
15          ECX1325 Switch Assembly
–            SPX1250WA 6 Ft. Cord Set – No. 14/3 AWG

MODULAR FLEX LOOP SYSTEMS
17          SPX14853 Sweep Elbow Union Assembly
16          ECX1326A Flex Loop Elbow
