Hayward SP1590 Series Power-Flo Matrix Parts
Item #See Below

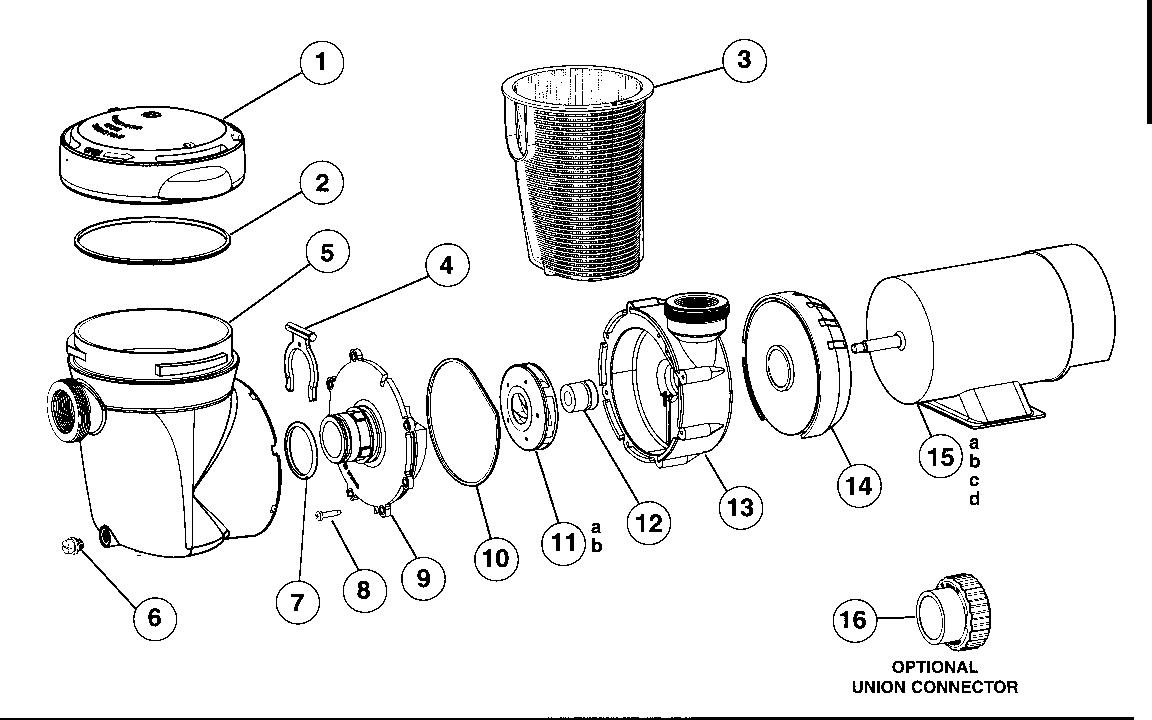

SP1590 SERIES POWER-FLO MATRIX
PARTS OF PUMP MODELS: SP1591, SP1592, SP1593
REF. # PART #/DESCRIPTION
6 SPX1700FG Drain Plug w/Gasket
11a SPX1500F Impeller Assembly (ref. part number on original equipment)
11b SPX1500L Impeller Assembly (ref. part number on original equipment)
12 SPX1500KA Shaft Seal Assembly
15b SPX1510Z1XE 1 HP Single Speed Motor w/Switch, Flex 48
16 SP1500UNPAK2 OPTIONAL-Union Connector Assembly (2 req’d)
Parts below available by special order only.
REF. # PART #/DESCRIPTION
1 SPX5500D Strainer Cover w/Lock Ring & O-ring
2 SPX5500H Strainer Cover O-ring
3 SPX5500F Strainer Basket
4 SPX5500G Strainer Retainer/’C’ Clip
5 SPX5500C Strainer Housing
7 SPX5500K Strainer O-ring
9 SPX5500B Pump Cover
10 SPX0710XZ5 Housing O-ring
13 SPX5500A Pump Housing
14 SPX5500E Shroud Assembly
15c SPX1515Z1E 1.5 HP Single Speed Motor w/Switch, Flex 48
15d SPX1510Z24XE 1 HP Two Speed Motor w/Switch, Flex 48
