Hayward SP2600X Series Super Pump Parts
Item #See Below

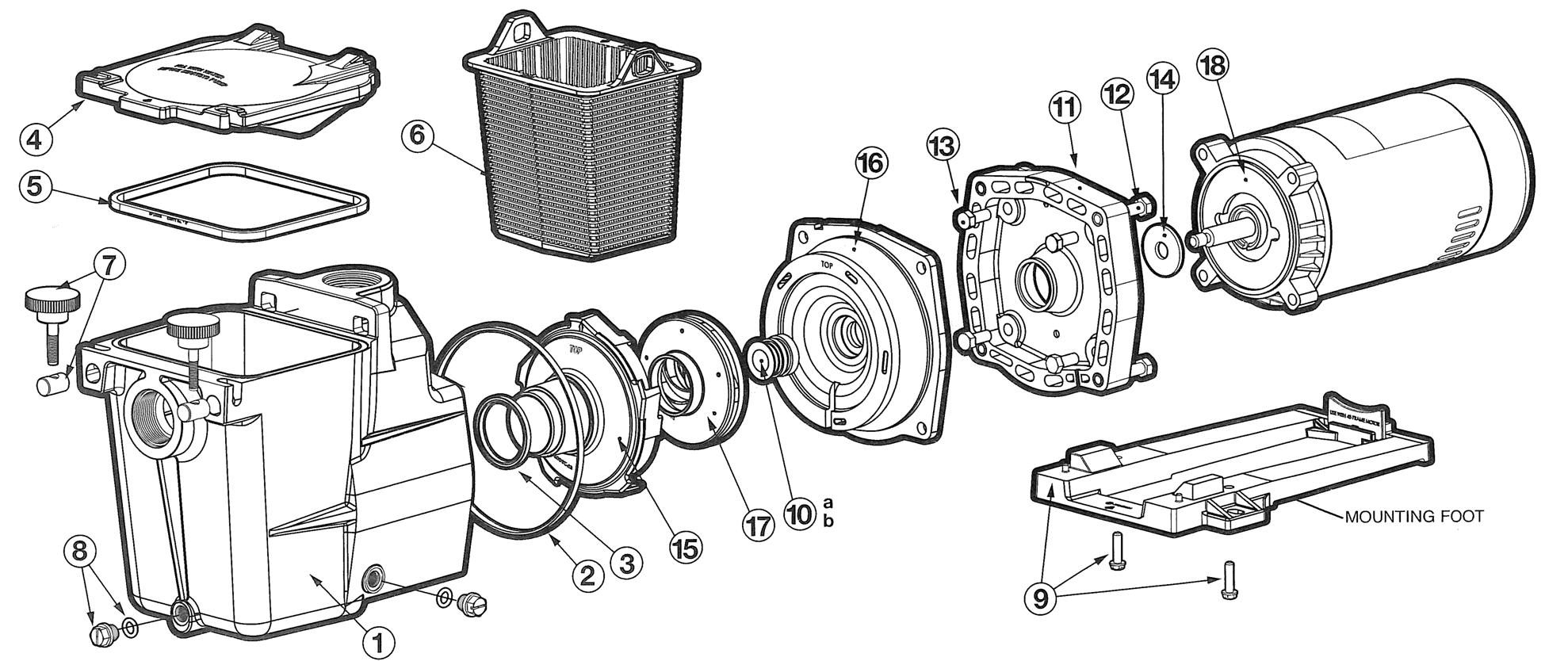

SP2600X SERIES NEW SUPER PUMP™ (MAX RATED)
PARTS OF PUMP MODELS: SP2600X5, SP2605X7, SP2607X10, SP2610X20, SP2621X25
Ref. # PART#/DESCRIPTION
1 SPX1600AA Pump Housing/Strainer, 1 -/2” x 1-1/2” , with Drain Plugs
1 SPX1620AA Pump Housing/Strainer, 2” x 2”, with Drain Plugs
2 SPX1600T Housing Gasket
3 SPX1600R Diffuser Gasket
4 SPX1600D Strainer Cover
5 SPX1600S Strainer Cover Gasket
6 SPX1600M Basket
7 SPX1600PN Hand Knob Kit (includes Swivel Nut & Hand Knob)
– SPX1600V 1/4” Drain Plug (1991 and Prior)
8 SPX1700FG 1/4” Drain Plug with Gasket (1992 and later)
– SPX1600Z52 Mounting Foot Cap Screw (Set of 2-1995 and prior, 2 sets required)
10a SPX1600Z2 Seal Assembly
11 SPX1600F5 Motor Mounting Plate
13 SPX0125Z44 Motor Cap Screw (set of 4)
14 SPX0125F Slinger
15 SPX2600B Diffuser, for 1/2 thru 2 HP
16 SPX2600E5 Seal Plate, for 1/2 thru 2HP
17 SPX2600C Impeller, for 1/2 HP Max Rated
17 SPX2605C Impeller, for 3/4 HP Max Rated
17 SPX2607C Impeller, for 1 HP Max Rated
17 SPX2610C Impeller, for 1 1/2 HP Max Rated
17 SPX2615C Impeller, for 2 HP Max Rated
17 SPX1621C Impeller, for 2-1/2 HP Max Rated
18 SPX1605Z1M Motor, 3/4 HP, Threaded Shaft, (Single-phase, 60 Cycle 115/230V)
18 SPX1607Z1M Motor, 1 HP, Threaded Shaft, (Single-phase, 60 Cycle 115/230V)
18 SPX1610Z1M Motor, 1-1/2 HP, Threaded Shaft, (Single-phase, 60 Cycle 115/230V)
18 SPX1615Z1M Motor, 2 HP, Threaded Shaft, (Single-phase, 60 Cycle 115/230V)
18 SPX1620Z1M Motor, 2-1/2 HP, Threaded Shaft, (Single-phase, 60 Cycle 230V)
Parts below available by special order only.
Ref. # PART#/DESCRIPTION
4 SPX1600DB Strainer Cover for Biguanide Sanitizers NOT Pressure Testable
9 SPX2600G1 Mounting Foot w/Adapter and Screws
12 SPX1600Z4 Housing Cap Screw
15 SPX1616B Diffuser, for 2-1/2 HP only
16 SPX1611E5 Seal Plate, for 2-1/2 HP only
