Hayward SP3000X Series Super II Pump Parts
Item #See Below

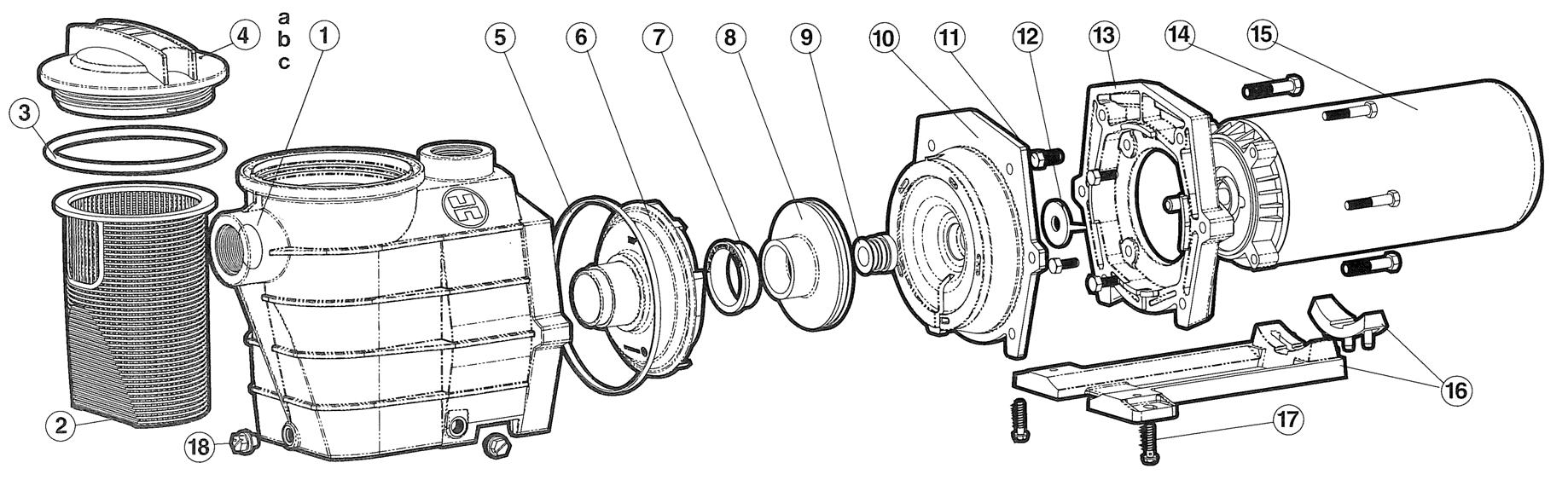

SP3000X SERIES SUPER II PUMP™ (MAX RATED)
PARTS OF PUMP MODELS: SP3005X7, SP3007X10, SP3010X15, SP3015X20, SP3020X25, SP3025X30
REF # PART#/DESCRIPTION
2 SPX3000M Basket
3 SPX3000S Strainer Cover O-Ring
5 SPX3000T Housing Gasket
– SPX1600R Diffuser Gasket
6 SPX2600B Diffuser, for 3/4 through 2 HP (1987 and prior)
7 SPX3021R Impeller Ring – 2-1/2 through 3 HP (3000 Series Inpellers Only)
9 SPX1600Z2 Seal Assembly
10 SPX3020E Seal Plate, for SP3000 Series Impellers
11 SPX0125Z44 Motor Cap Screw (Set of 4)
12 SPX0125F Slinger
17 SPX1600Z52 Mounting Foot Cap Screw (Set of 2 )
18 SPX1600V 1/4” Drain Plug (1991 and prior)
18 SPX4000FG 1/4” Drain Plug with Gasket
PARTS LISTED BELOW MUST BE ORDERED FOR SPECIFIC MODEL & HP:
—————-1987——————1988
8 SPX2605C SP3005-C Impeller, for 3/4 HP
8 SPX2607C SP3007-C Impeller, for 1 HP
8 SPX2610C SP3010-C Impeller, for 1-1/2 HP
8 SPX2615C SP3015-C Impeller, for 2 HP
—————-1989——————1990
8 SPX3020C SP3021-C Impeller, for 2-1/2 HP
8 SPX3026-C Impeller, for 3 HP
15 SPX1605Z1M Motor, 3/4 HP, Threaded Shaft, (Single-phase, 60 Cycle 115/230V)
15 SPX1607Z1M Motor, 1 HP, Threaded Shaft, (Single-phase, 60 Cycle 115/230V)
15 SPX1610Z1M Motor, 1-1/2 HP, Threaded Shaft, (Single-phase, 60 Cycle 115/230V)
15 SPX1615Z1M Motor, 2 HP, Threaded Shaft, (Single-phase, 60 Cycle 115/230V)
15 SPX1620Z1M Motor, 2-1/2 HP, Threaded Shaft, (Single-phase, 60 Cycle 230V)
Parts below are available by special order only.
1 SPX3000AA Pump Housing/Strainer, 1-1/2” x 1-1/2”, with Drain Plugs
1 SPX3020AA Pump Housing/Strainer, 2” x 2”, with Drain Plugs
4a SPX3000D Strainer Cover, HandKnob Style, Clear
4b SPX3100D Strainer Cover, Threaded Style
4c SPX3100DB Strainer Cover for Biguanide Sanitizers NOT Pressure Testable
6 SPX3000BN Diffuser, for 3/4 through 1-1/2 HP (after 1988 )
6 SPX3000B Diffuser, for 2-1/2 and 3 HP (1989 and Prior)
6 SPX3021B Diffuser, for 2, 2 -1/2 and 3 HP (after 1990)
7 SPX3005R Impeller Ring – 3/4 through 2 HP (3000 Series Impellers Only)
13 SPX3000F Motor Mounting Plate
14 SPX1600Z4 Housing Cap Screw
– SPX3000Z26 Washer, 3/8” – for cap screw (Set of 6) (Not Shown)
16 SPX3000GA Mounting Bracket w/Adapter and 2 Cap Screws
PARTS LISTED BELOW MUST BE ORDERED FOR SPECIFIC MODEL & HP:
—————-1989——————1990
8 — SP3016-C Impeller for 2 HP
8 SPX3020C SP3021-C Impeller, for 2-1/2 HP
15 SPX1625Z1M Motor, 3 HP, Threaded Shaft, (Single-phase, 60 Cycle 230V)
