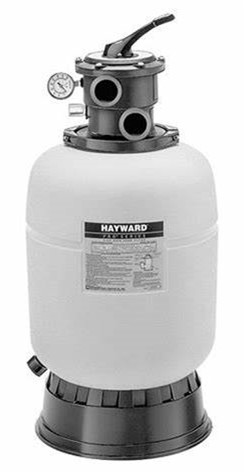

Hayward S166T Sand Filter Parts
Item #See Below

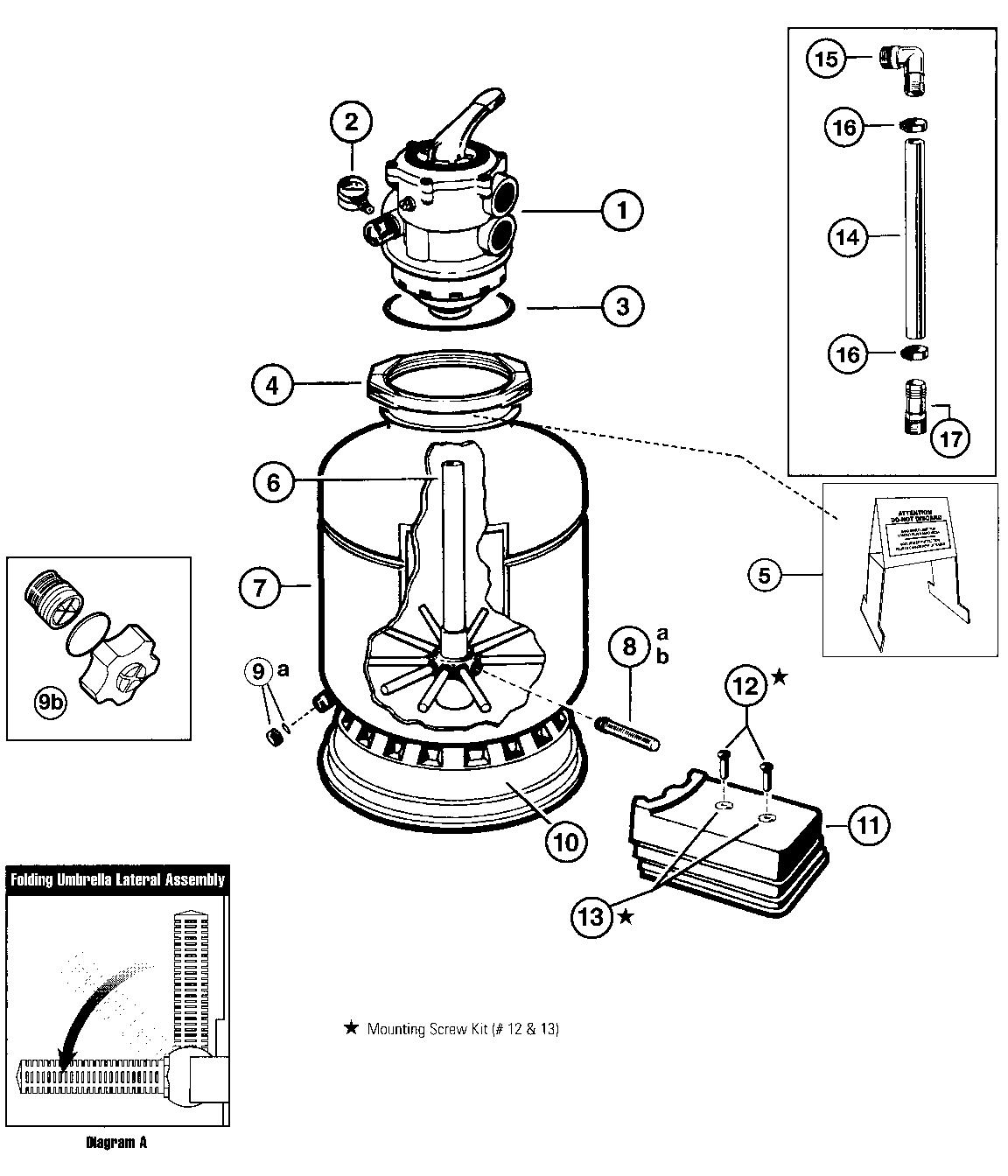

REF. # PART #/DESCRIPTION
1a SP0714T 1 1/2” Vari-Flo XL Control Valve – 7 Position
2 ECX270861 Pressure Gauge
3 GMX600F Valve/Tank O-Ring
4 GMX600NM Flange Clamp (Valve-Tank)
6 SX164DA Folding Lateral Assembly w/Center Pipe (1997-)
8a SX200Q Threaded Lateral (10 req’d)
9a SX180HG Drain Cap & Gasket (2005 and Prior)
Parts below are available by special order only.
REF. # PART #/DESCRIPTION
5 SX202S Sand Shield
6 SX164DA Folding Lateral Assembly w/Center Pipe (1997-)
8a SX200Q Threaded Lateral (10 req’d)
8b SX200QN Pivot/Ball Lateral (10 req’d)
9a SX180HG Drain Cap & Gasket (2005 and Prior)
— SX180LA Drain Cap Assembly (Cap, Gasket, Screen)
10 SX164B Filter Support Stand (Skirt)
11 SX164C Pump Base
— SX180K System Base (S166T Series 1999 – )
12, 13 ECX1108A 5/16” x 3/4” Mounting Screw Kit
14 SX160Z4 26” Long Hose
15 SPX1105Z4 1 1/2” Elbow Hose Adapter
16 ECX18028 Hose Clamp (2 req’d)
17 SPX1091Z2 1 1/2” Straight Hose Adapter
