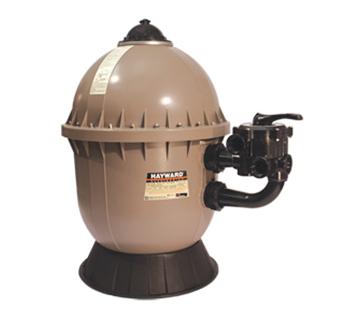

Hayward S200 Sand Filter Parts
Item #See Below

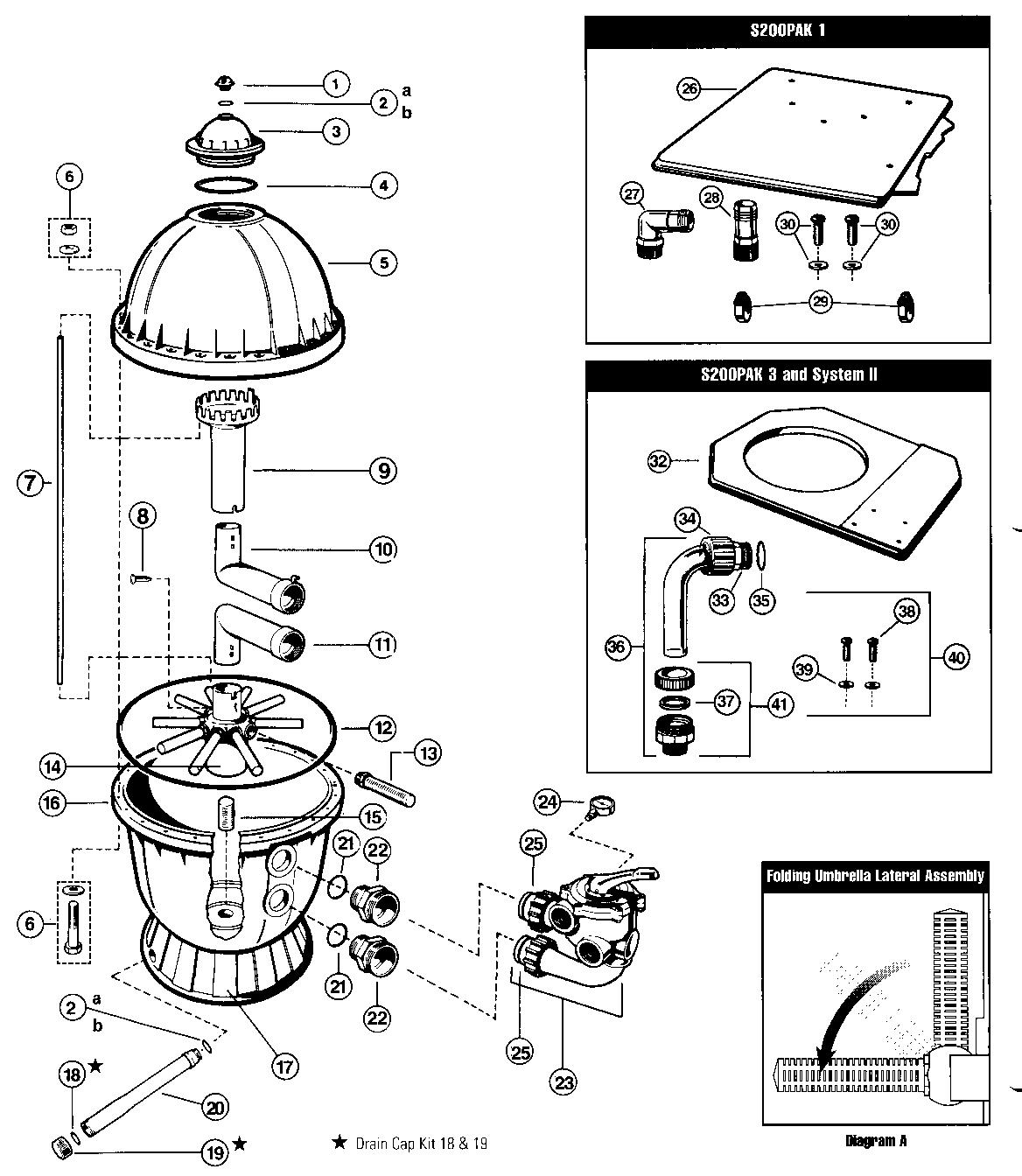

REF. # PART #/DESCRIPTION
1 SX200G Manual Air Relief Cap
2 SX200Z5 O-Ring,13/16” O.D.
3 SX200K Access Cover
4 SX200Z6 O-Ring
12 SX200Z7 O-Ring
18, 19 SX200Z8A Drain Kit (S200-Z-8, S200-Z-9)
20 SX200EB Drain Pipe Assembly – (Pipe, Gasket, Cap, O-ring)
21 SX200Z3 O-Ring (2 req’d)
22 SX200D Bulkhead Fitting (2 req’d)
23 SPX0710X32 Vari-Flo (control) Valve Assembly – 1-1/2”
24 ECX270861 Pressure Gauge
25 SX200Z4 O-Ring (2 req’d)
S200-PAK-2, 3 and SYSTEM II
35 SPX1425Z6 O-Ring
Parts Below Available by Special Order Only
REF. # PART #/DESCRIPTION
5 SX200BT Filter Head Taupe
6 ECX1642A Head Bolt Kit (Includes 6, 7, & 8-hex nut, head bolt, and washer
7 SX200Z1 Plastic Air Tube
8 SX200Z2 Air Tube Lock Screw
9 SX200L Top Diffuser *Limited Quantity
10 SX200C Internal Diffuser Elbow Pipe (top)
13 SX200QN Lateral, Pivot/Ball Lateral (10 req’d)
14 SX202QA Lateral Holder Assembly (See Diagram A)
15 SX200H Bottom Screen
16 SX200AA1 Filter Tank Bottom w/Drain Assembly- Taupe
17 SX200J Filter Support Stand
200-PAK-1
27 SPX1105Z4 1 1/2” Elbow Hose Adapter
28 SPX1091Z2 1 1/2” Straight Hose Adapter
29 ECX18028 Hose Clamp (2 req’d)
30 ECX1161Z2 Mounting Screw Set with Washers (2 req’d)
S200-PAK-2, 3 and SYSTEM II
32 ECX1291 Standard Pump/Filter Mounting Base
33 SPX1480A Union Ball End
34 SPX1480C Union Nut
36 SPX1485B3 Union Elbow w/Compression Assembly
(Does not include #34 & 35)
37 SPX1485G Compression Gasket (1987)
39 ECX1109 5/16” Washer (2 req’d)
41 SPX1485DA Compression Fitting Assembly w/Gasket
