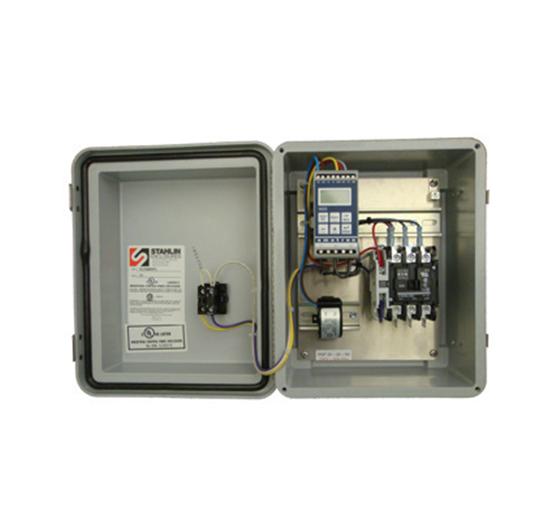

H2 Flow PSP20 Automatic Pump Shut Off Systems to Meet VGBA
Item #Special Order Only
Facilities having a single main suction outlet or two or more outlets within 3 feet of each other are required to have a second layer of anti-entrapment protection; the PSP20 is an approved device. Full details of the requirements of the Act can be found at the Consumer Product Safety Commission’s website: www.poolsafety.gov.
Using the existing pump motor as a sensor, Emotron’s patented Shaft Power Monitoring technology will reliably detect a swimmer blocking the suction drain and quickly shut off the pump. The PSP20 accurately monitors motor power to either single-phase or three-phase pumps.
| MODEL # | SUPPLY
VOLTAGE |
FULL LOAD
AMP RANGE |
SUPPLY
PHASES |
MOTOR
HP RANGE |
| PSP20-10-25 | 120 | 0.4 – 25 | 1 | 0.5 – 1.5 |
| PSP20-10-50 | 120 | 26 – 50 | 1 | 2.0 – 3.0 |
| PSP20-20-25 | 208 / 230
208 / 230 |
0.4 – 25
0.4 – 25 |
1
3 |
0.5 – 3.0
0.5 – 7.5 |
| PSP20-20-50 | 208 / 230
208 / 230 |
26 – 50
26 – 50 |
1
3 |
5.0 – 7.5
10.0 |
| PSP20-20-65 | 208 / 230
208 / 230 |
51 – 65
51 – 65 |
1
3 |
10.0
15.0 – 20.0 |
| REMOTE
HORN |
||||
| 874-N5 | 120 | N/A | N/A | N/A |
| 874-R5 | 208 / 230 | N/A | N/A | N/A |
